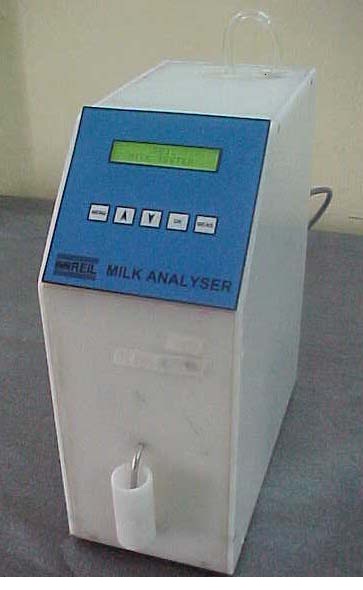

ULTRASONIC MILK ANALYSER (UMA)

Description

The Ultrasonic Electronic Milk Analyser performs measurement of Fat & Solid-not-Fats (SNF) content in milk. The percentage of Fat & SNF content is measured accurately and displayed quickly on a Ultrasonic Milk Analyser LCD for the convenient read-out by the user and the milk producer. The instrument is simple, economical, reliable and rugged for milk analysis.
This instrument can also be integrated with Automatic Milk Collection Unit for quick measurement of milk parameters, processing and storing them for records. The instrument is ideally suited for the village milk collection centers, milk chilling centres etc. and milk testing laboratories.

Working principle

The Ultrasonic Electronic Milk Analyser works on the principle of Ultrsonics. The signals allowed to pass through the sample are measured digitally for accurate display.

   Microprocessor based state-of art technology

  Displays % FAT & Solid-not-Fats (SNF)

  Provision of auto cleaning & field calibration.

  Suitable for Raw, Fresh and homogenised milk.

  Small sample volume of 10 ml

  Sample reusable after test

  Performs 55-60 tests per hour

  Quick measurement and instant
      digital readout on LCD

  RS 232 data output

  Low power consumption

  Reliable & rugged design, suitable for rural environment

  Operator friendly-easy to maintain & simple to use

  Simple & inexpensive method of milk analysis

  Close correlation to accepted standard methods

Processing

: Micro-processor controlled

Display

: 16 Characters x 2 Lines LCD display

Measuring Range

: FAT 0 to 12% & SNF 5 to 12%

Accuracy

: FAT ± 0.10 SNF ± 0.20

Repeatability (SD)

: FAT & SNF 0.01

Sample Volume

: 10ml/ test (reusable)

Sample Temperature

: 20 to 35 °C

Measurement Time

: 55 Seconds per Sample

Port

: Serial port for data transmission to PC

Power Consumption

: 100 Watts max.

Cabinet

: ABS/ Polycarbonate body

Power Supply

: AC Supply 230V (+ 10%, -15%), 50Hz, 1-φ, (1 Amp Max.)

Ambient Temp.

: 5 - 45° C
